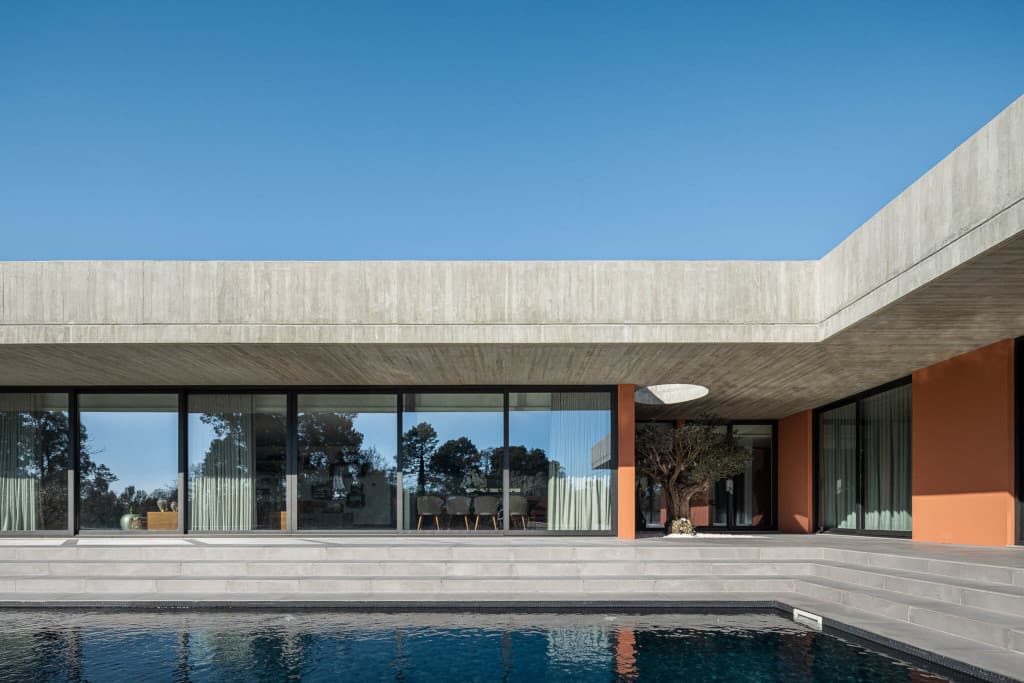

New system CX
Sistemas
June 18, 2025
The minimalist design CX sliding system combines elegance, high energy efficiency, and acoustic comfort. This system is ideal for those seeking a contemporary solution that maximizes natural light, provides excellent thermal and acoustic insulation, and enhances the modern aesthetics of living spaces.

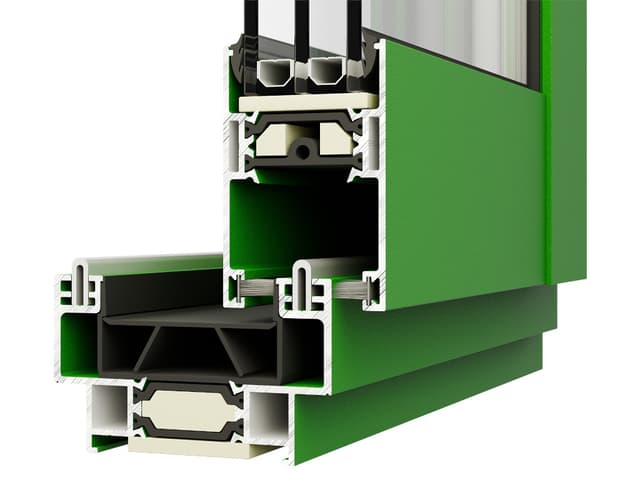

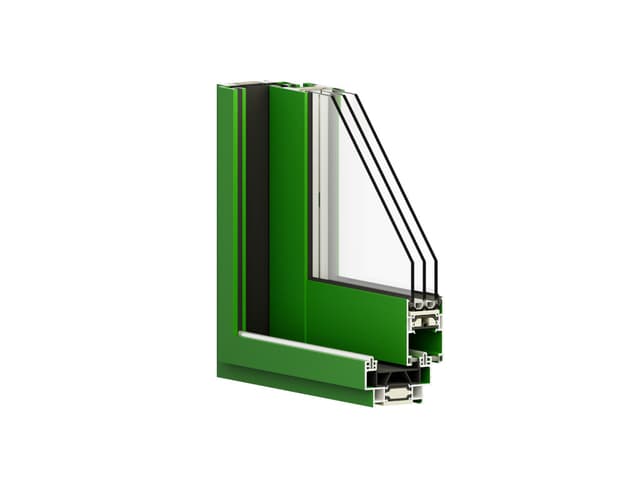

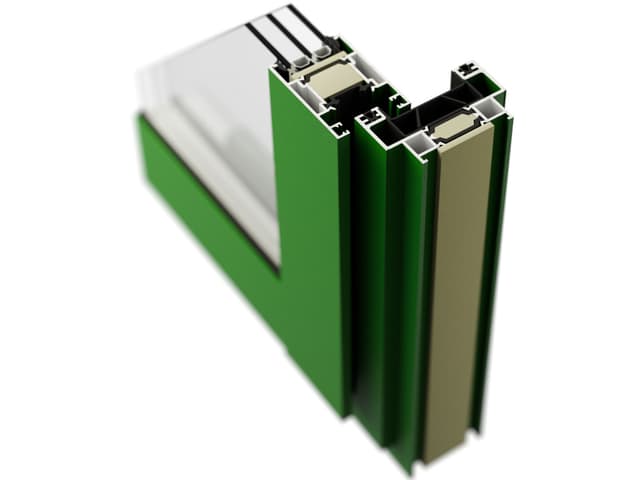

The system’s profiles use 32 mm polyamides to ensure an effective thermal break, essential for minimizing energy loss and improving indoor comfort. With the capacity to accommodate triple glazing up to 36 mm thick, the windows deliver outstanding thermal and acoustic performance, blocking external noise and maintaining a pleasant indoor temperature throughout the year. This minimalist design allows for large glass surfaces, ensuring unobstructed views and a seamless connection with the outdoor environment.
Developed with a strong commitment to sustainability, the system has been designed to optimize the energy efficiency of buildings, reducing energy consumption while maximizing natural daylight. The robust structure and use of high-quality materials ensure durability, while the elegant design complements any architectural style, from traditional to contemporary.
In addition to thermal and acoustic performance, the CX system meets the most stringent comfort and safety requirements. With the capacity to support sashes up to 3000 mm in height and 250 Kg in weight, this system is ideal for large openings that integrate interior and exterior spaces. The sashes glide smoothly along a stainless steel rail, ensuring light and silent operation, even with large dimensions.
The minimalist design is emphasized by profiles that maximize the glazed area, allowing greater natural light entry and creating a sense of openness and space.
Technical Specifications:
Fixed Frame: 60 mm
Movable Frame: 48 mm
Profile Thickness: 1.5 mm
Maximum Weight: up to 250 Kg/sash
Glazing: 28–36 mm
Thermal Transmittance Ug: 0.50 W/m²K
Acoustic Performance: 38 dB
Air Permeability: Class 4
Wind Resistance: C5
Thermal Transmittance Uw: from 1.1 W/m²K
Opening Cycles: Class 4
Water Tightness: 7A
Anti-Burglary: RC2
Maximum Leaf Dimensions: 300 mm – 2200 mm (W); 500 mm – 3200 mm (H)
